3d Laser Scanning Head Black Metal Material With Wave Length 1064nm

Name: 3d Laser Scanning Head Black Metal Material With Wave Length 1064nm
Brand: BJJCZ
Price: 1 USD

China 3d Laser Scanning Head Black Metal Material With Wave Length 1064nm factory

Brand Name : BJJCZ

Model Number : 3D

Place of Origin : China

MOQ : 1Set

Price : negotiation

Payment Terms : T/T

Supply Ability : 100Set

Delivery Time : 25work days

Packaging Details : carton

Color : black

Material : metal

wavelength : 1064nm

Weight : 3 kg

Contact Now

3d Laser Scanning Head Black Metal Material With Wave Length 1064nm

Detailed parameters

Aperture<3 mm

Wavelength 1064nm

Dynamic performance

Tracking error 0.16 ms

Step response time

1% of full scale 0.40 ms

10%of full scale 1.2 ms

Typical speeds5.0 m/s

Weight (without objective) 3 kg

f=254 f-theta lens (174*174) ±40

Common Speci

(all angles are in optical degrees)

Dynamic performance

Repeatability (RMS) < 2 µrad

Offset drift < 30 µrad/K

Gain drift < 80 ppm/K

Long-term drift over 8 hours < 0.3 mrad

Optical performance

Typical scan angle ±0.35 rad

Gain error < 5 mrad

Zero offset < 5 mrad

Nonlinearity < 3.5 mrad / 44°

Power requirements

For XY ±15 V DC, max. 3 A each

For Z ±15 V 3A
Protocol Digital XY2-100

3d Laser Scanning Head Black Metal Material With Wave Length 1064nm

Product Tags:

laser scanning system

laser scanning equipment

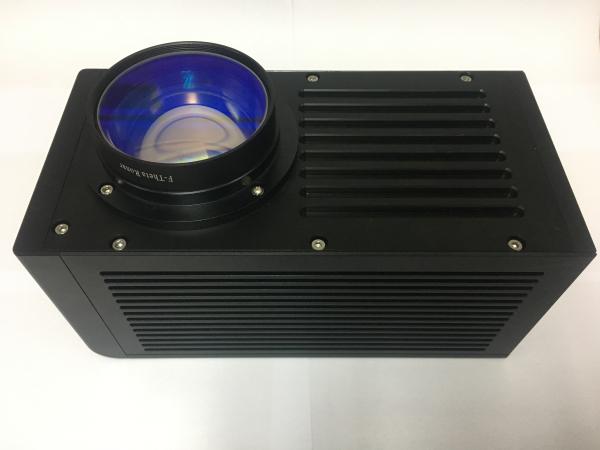

3d Laser Scanning Head Black Metal Material With Wave Length 1064nm Images
